XXL & XXXL Flat Linear Wire-Cut EDM

Terminology (common use):
Electric Spark Discharge Wire-Cut Machine = Wire-Cut EDM = EDW

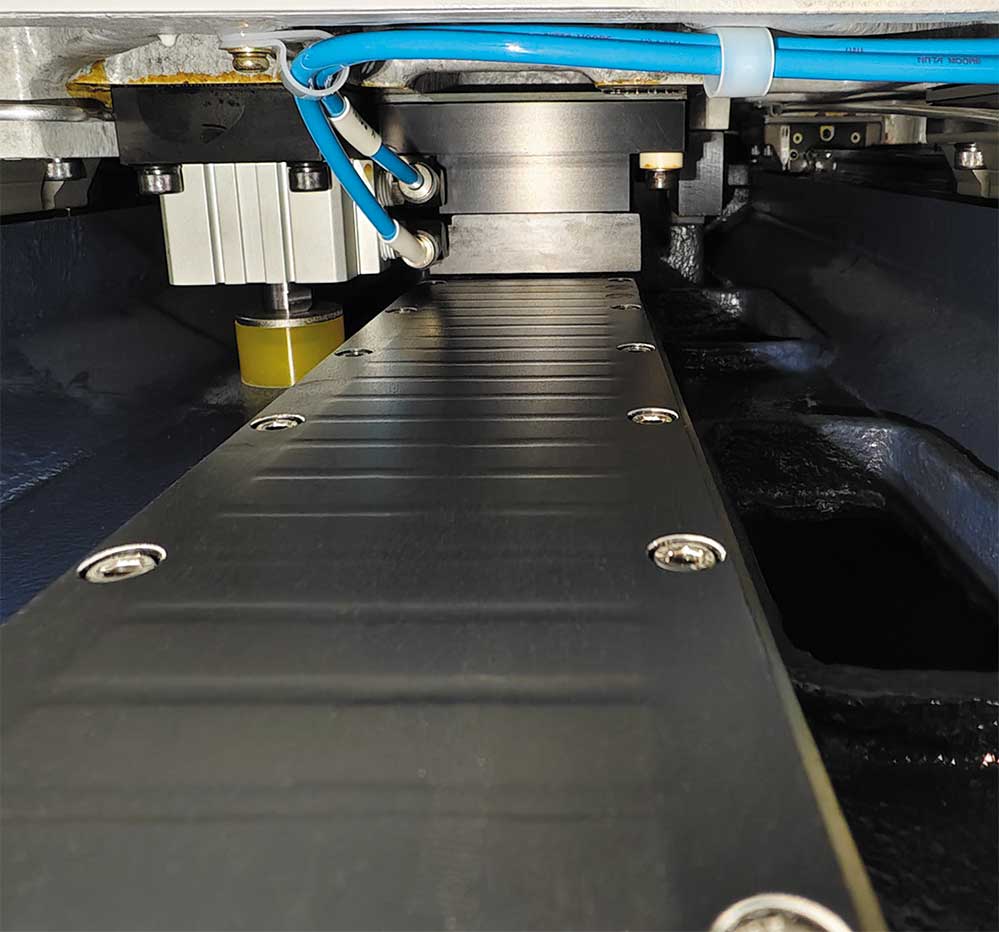

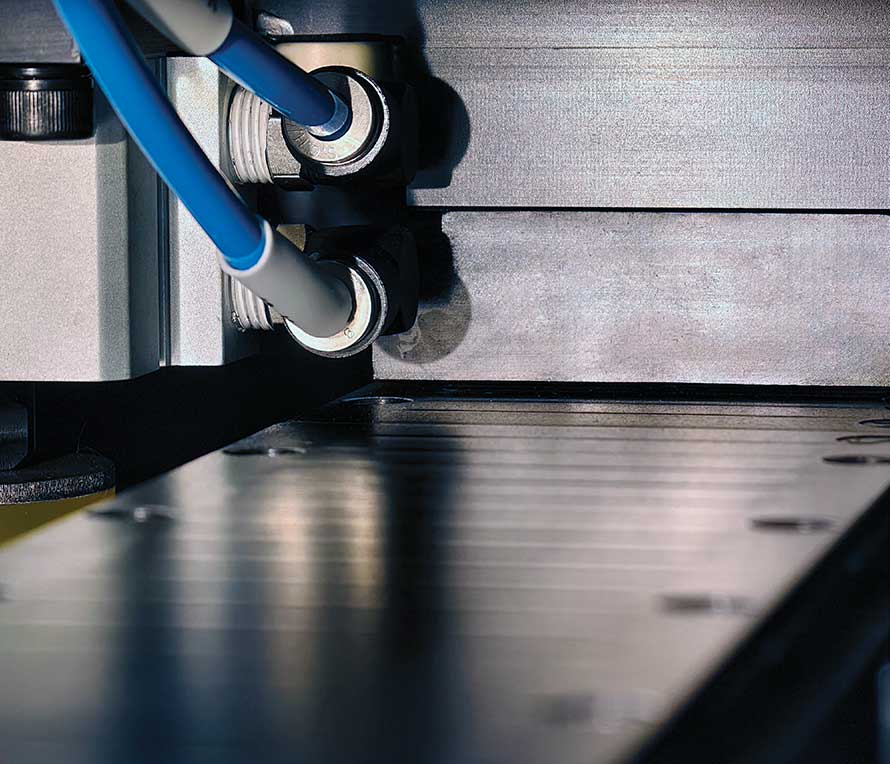

True Linear - Flat Linear Motors

Extra Rigid - Hi-Power

Hi Torque - Lightning Fast Response

Fantastic Spark Gap
Correction Rate =
hundreds of times/sec

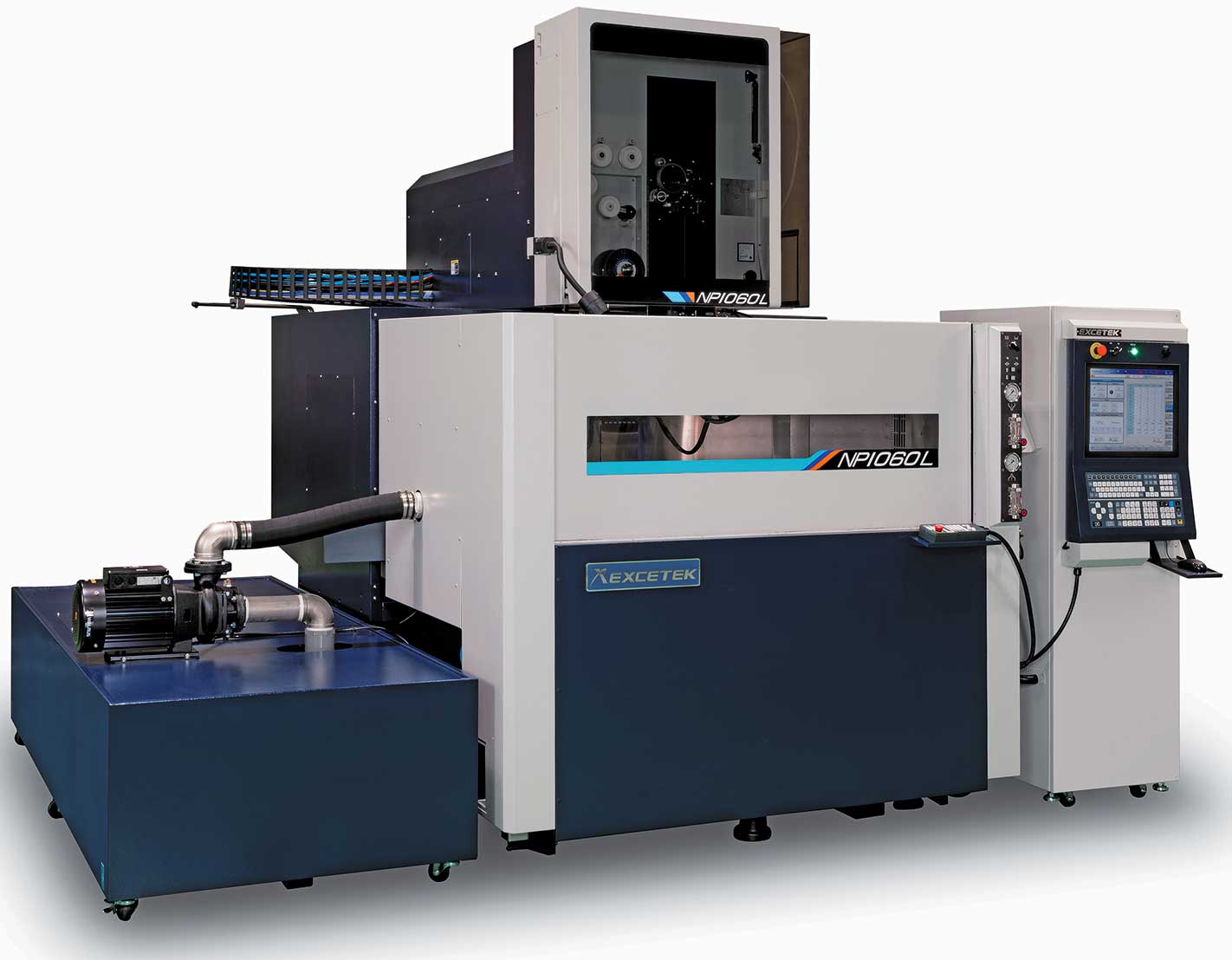

NP1060L

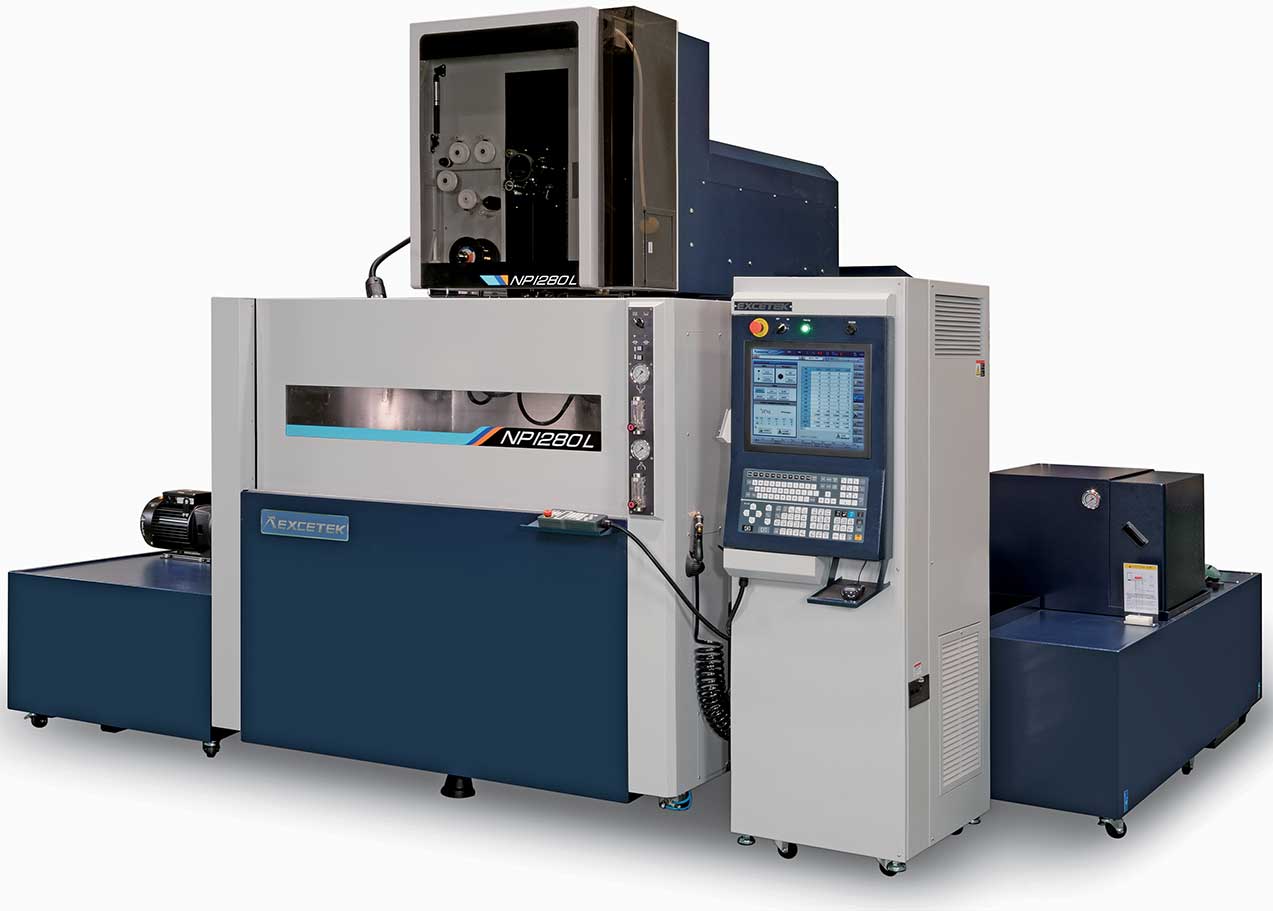

NP1280L

XXL and XXXL size Wire-Cut EDM

ALL MODELS OF SUBMERGED TYPE

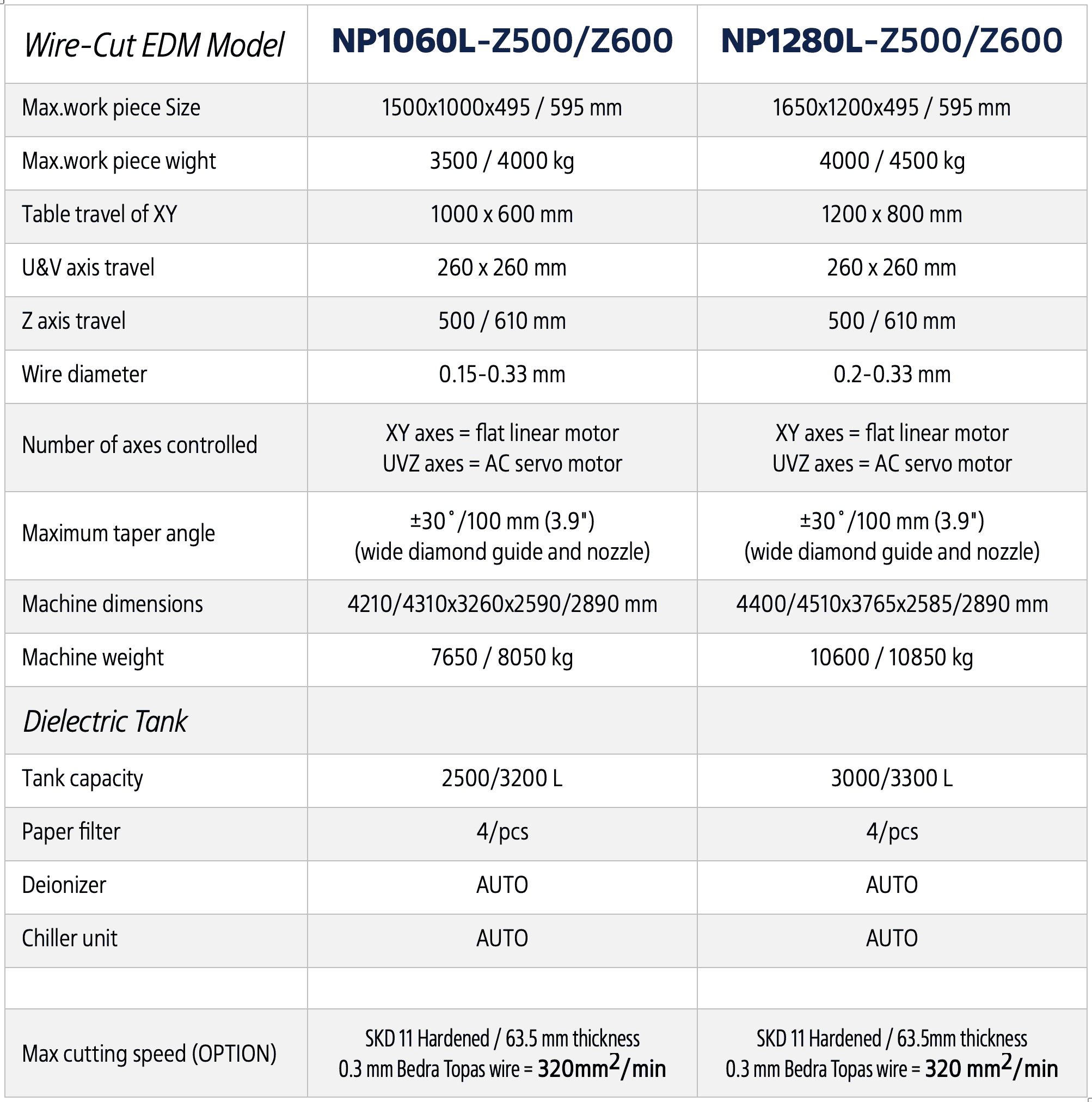

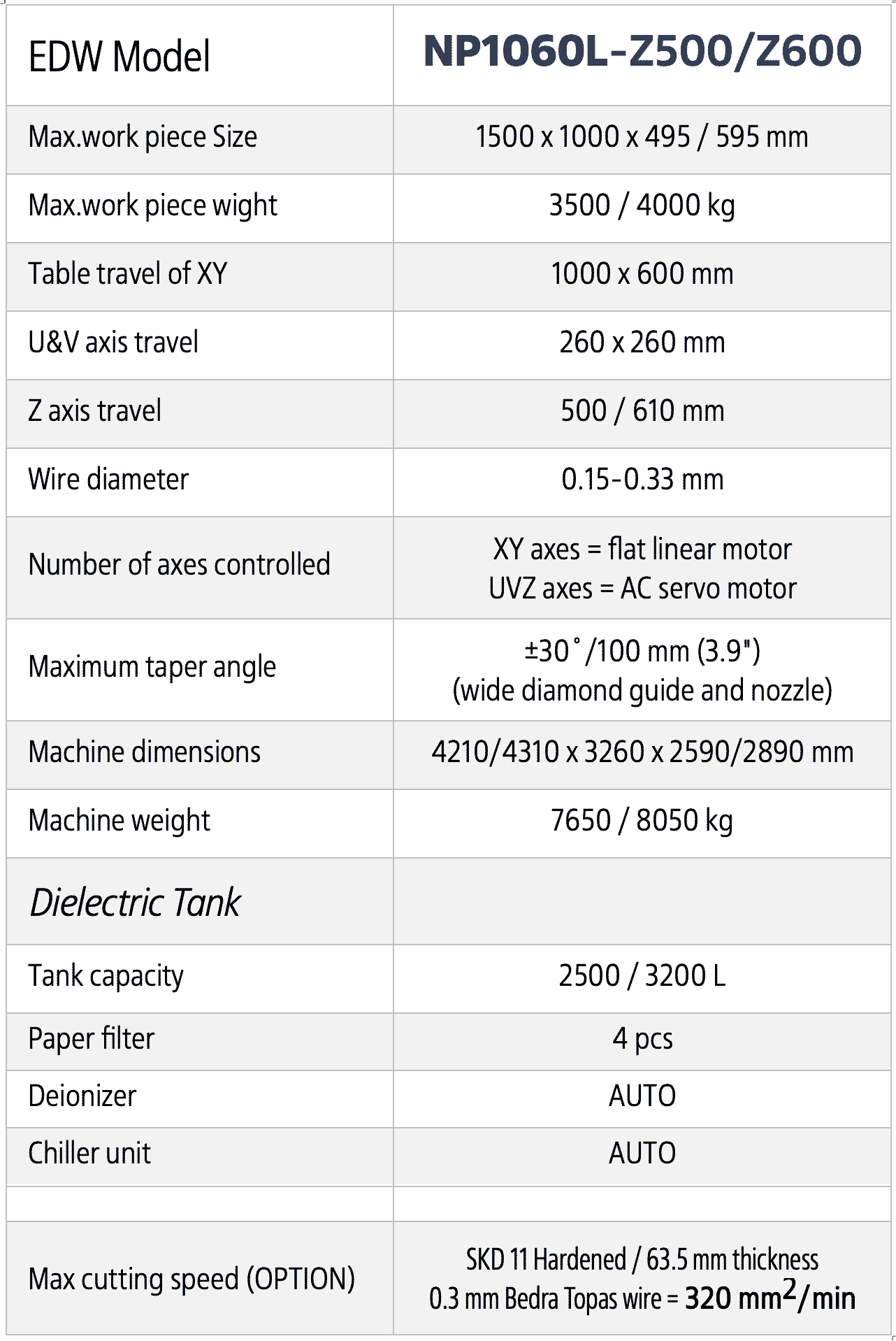

Specifications	NP1060L-Z500 / -Z600
Max. work piece size	1500 x 1000 x 495 / 595 mm
Max. workpiece weight	3500 / 4000 kg
Table travel of XY	1000 × 600 mm
UV axes travel	260 × 260 mm
Z axis travel	500 / 610 mm
Ø wire electrode	∅ 0,15 ∼ 0,30 mm
Number of axes controlled	XY axes = flat (planer) linear motors + UV and Z axes = AC servo motors
Maximum taper angle	±30°/100 mm (for the taper ocer 15° wide diamond guides and nozzles are required— OPTION)
Maximum cutting speed (OPTION)	SKD 11 Hardened steel / 63.5mm (2.5″) thickness 0.3mm (0.012″) Bedra Topas wire / 320mm2/min
Machine tool dimensions	4210 / 4310 × 3260 × 2590 / 2890 mm
Machine tool weight	7650 / 8050 kg
Tank capacity	2500 / 3200 L
Paper filter	4
Deionizer	AUTO
Chiller unit	AUTO

Specifications	NP1280L-Z500 / -Z600
Max. work piece size	1650 x 1200 x 495 / 595 mm
Max. workpiece weight	4000 / 4500 kg
Table travel of XY	1200 × 800 mm
UV axes travel	260 × 260 mm
Z axis travel	500 / 610 mm
Ø wire electrode	∅ 0,20 ∼ 0,33 mm
Number of axes controlled	XY axes = flat (planer) linear motors + UV and Z axes = AC servo motors
Maximum taper angle	±30°/100 mm (for the taper ocer 15° wide diamond guides and nozzles are required— OPTION)
Maximum cutting speed (OPTION)	SKD 11 Hardened steel / 63.5mm (2.5″) thickness 0.3mm (0.012″) Bedra Topas wire / 320mm2/min
Machine tool dimensions	4400/4510 × 3765 × 2585/2890 mm
Machine tool weight	10600/10850 kg
Tank capacity	3000/3300 L
Paper filter	4
Deionizer	AUTO
Chiller unit	AUTO

High precision:
-Smart Corner Control
-DPM – Digital Power Management)
-SFC – Super Finish Circuit (option)
Cost Saving:
–Intelligent Power Management
-Low wire consumption
-Low running cost
Automation:
-Hi-Speed Auto Wire Threading
-Workpiece Transfer Robot (option)
-Auto measurement and correction (option)
Intelligent Networking:
-Remote Control and Management
-Connect all controller
-Portable device monitor
Efficiency:
-DPM (Digital Power Management)
-Lead-in Control
-Electroless (non electrolytic) discharge power system

Standard Accessories:

XY linear scales 10 nm (0.01 µm)
AWT (Automatic Wire Threading)
Brass wire electrode (× 1 reel / 3 kg)
Clamping tool (× 1 set)
Ion exchange resin (× 10 liters)
Vertical alignment jig (× 1 set)
Paper filters (× 2 pcs)
Diamond guides (× 2 pcs)
Upper & lower flushing nozzles (× 2 sets)

Options:

Clamping beam
Super Finish Circuit (< Ra=0.2 µm)
Rotary indexing table of W-axis
AVR 15кVA
Jumbo Feeder L-50A
SMS option
Signal Tower
Remote Monitor System
Auto Measuring System
